Clinical workflow integration, diagnostic efficacy, and device utility

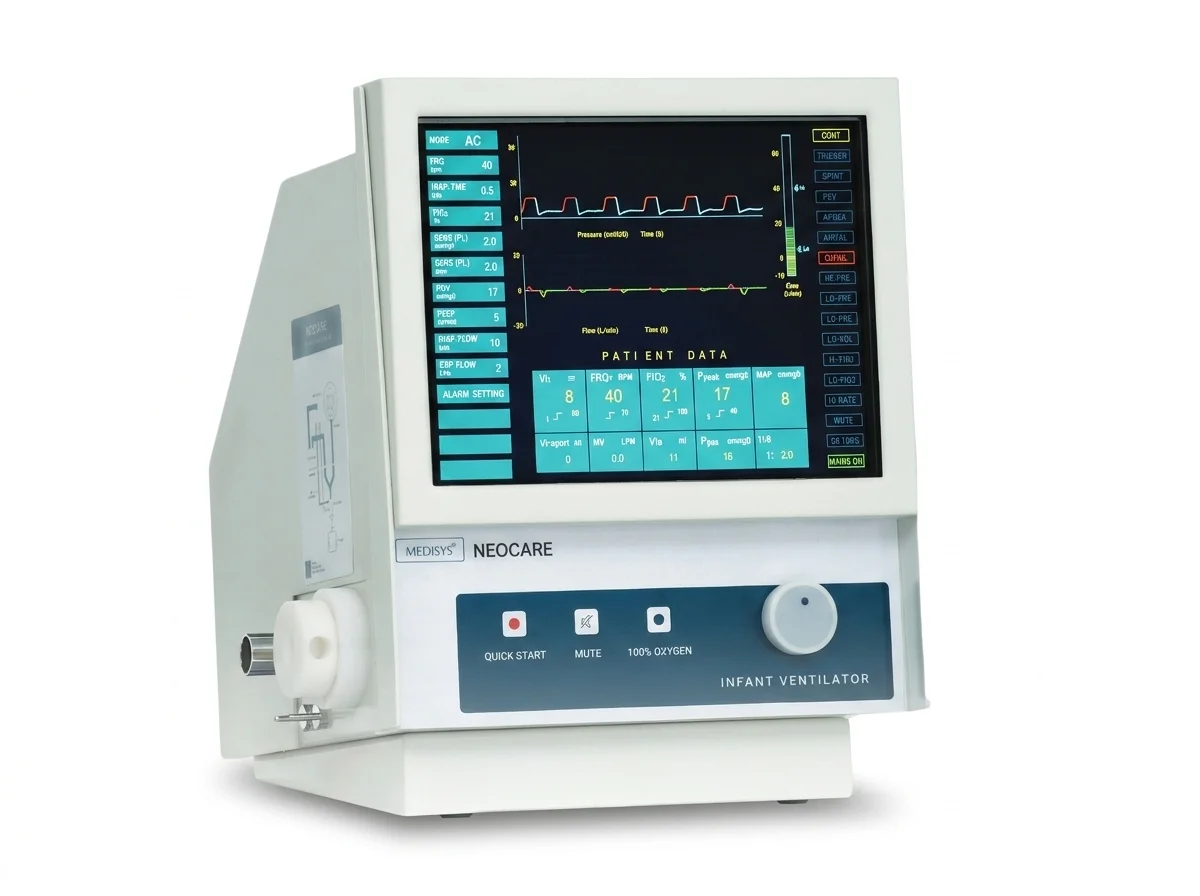

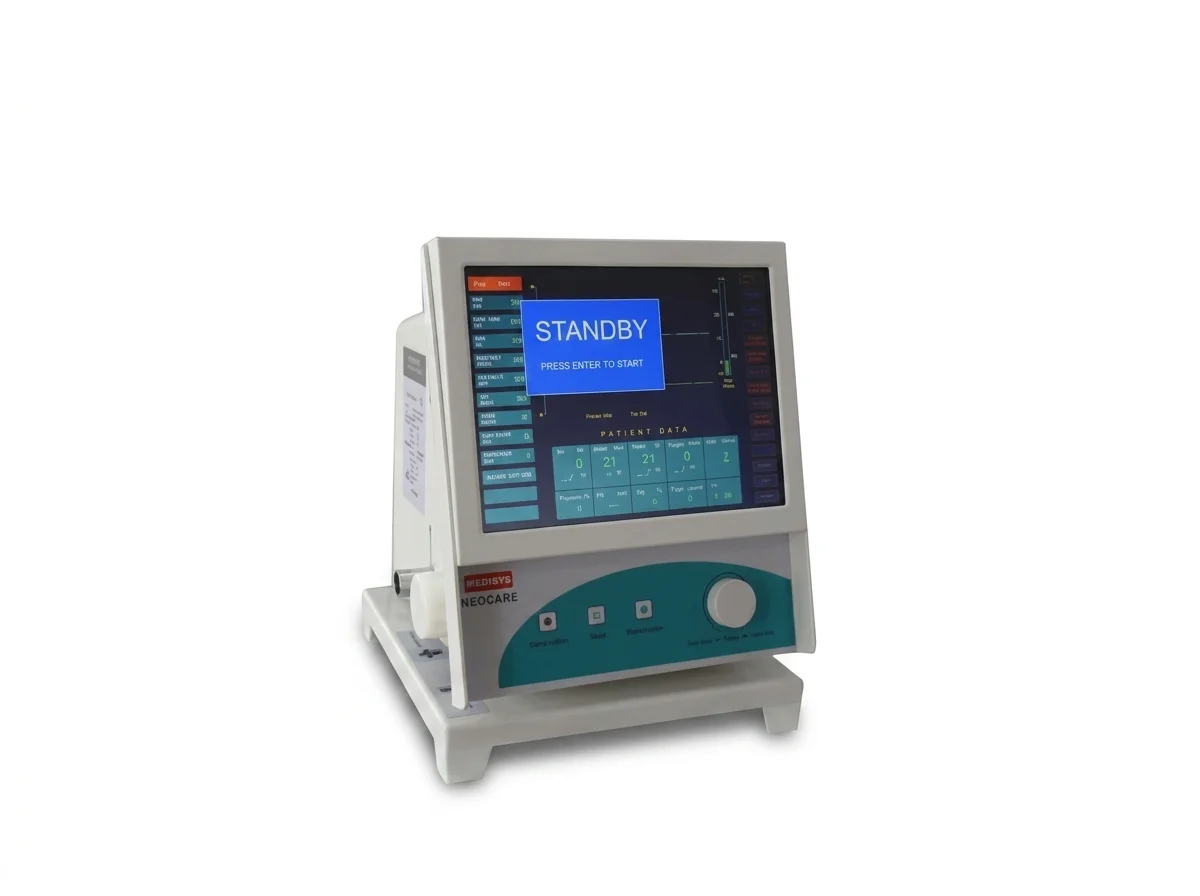

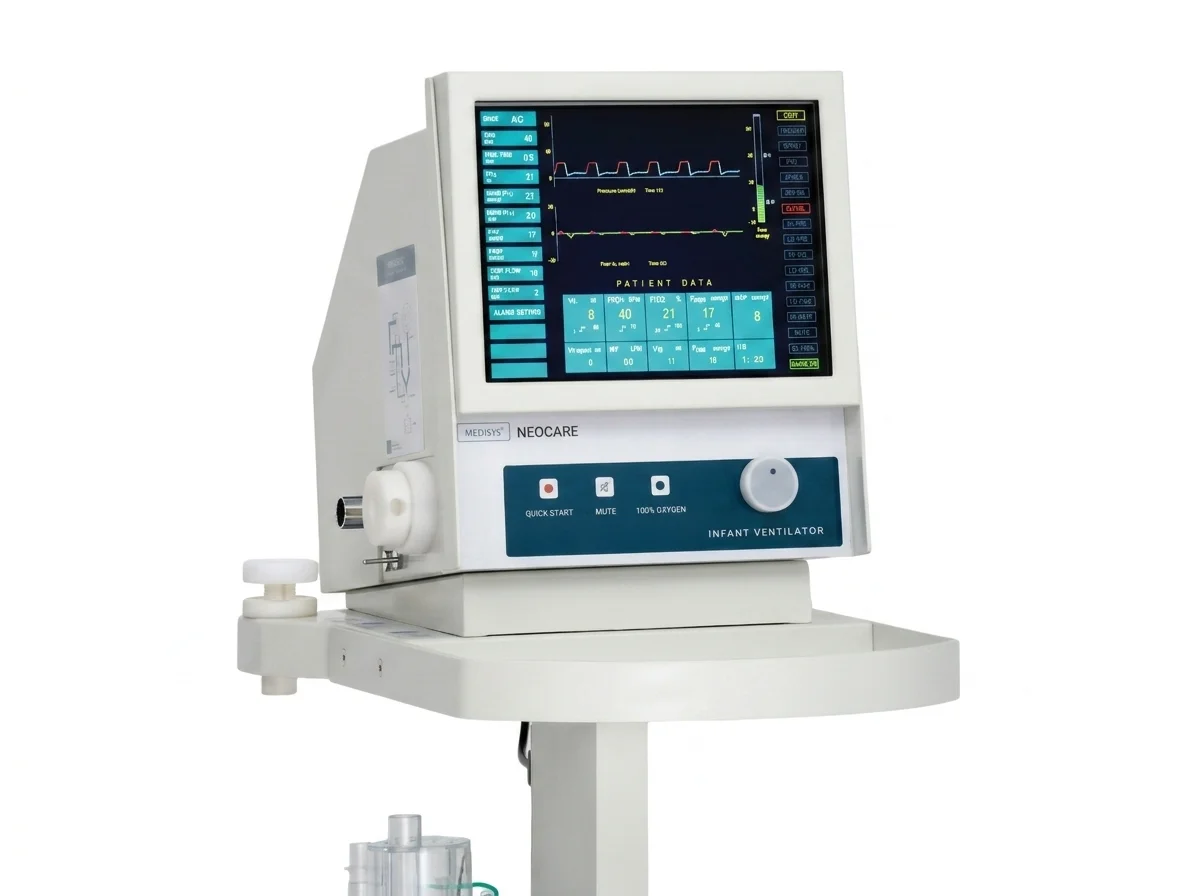

The Medisys Neocare Neonatal & Pediatric Ventilator is a high-precision microcontroller-based mechanical respiratory support workstation designed for Neonatal Intensive Care Units (NICU) and Pediatric ICUs across India. Featuring servo-controlled oxygen blending, apnea backup ventilation, and simultaneous pressure and volume regulation, it delivers safe, gentle ventilation tailored to premature neonates and pediatric patients. Equipped with a 12.1-inch color graphical LCD display for real-time monitoring of pressure-volume loops, automatic oxygen sensor calibration, and instant emergency 100% O2 delivery, it provides critical care teams with complete diagnostic confidence. SMD Medicare supplies the Neocare ventilator with complete accessories, humidifier, and hospital warranty.
Core technical and clinical performance highlights
Ventilation modes include Volume Control (VCV), Pressure Control (PCV), SIMV-VC, SIMV-PC, Pressure Support Ventilation (PSV), and CPAP.
Delivers tidal volumes ranging from 2 m L to 300 m L, suitable for neonatal and pediatric patients.
Features a 12.1-inch color TFT LCD touchscreen for waveform, loop, and numerical parameter display.
Offers adjustable inspired oxygen concentrations (Fi O2) from 21% to 100% via an integrated air/oxygen blender.
Monitors and displays key respiratory mechanics including Ppeak, Pmean, PEEP, exhaled tidal volume (Vte), minute ventilation (MV), and total respiratory rate (ftotal).
Supports PEEP settings from 0 to 30 cm H2O and maximum inspiratory pressure up to 70 cm H2O.
Incorporates both flow and pressure trigger sensitivity, adjustable across defined clinical ranges.
Equipped with an internal battery providing up to 2.5 hours of operational runtime.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-012 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (Ventilators) |
| Patient Type | Adult, Pediatric, Neonatal |
| Ventilation Modes | VCV, PCV, SIMV-VC, SIMV-PC, CPAP/PSV, PRVC, APRV |
| Tidal Volume | 20 - 2000 mL |
| Respiratory Rate | 1 - 100 bpm |
| Inspiration Time | 0.1 - 10 s |
| I:E Ratio | 4:1 - 1:10 |
| FiO2 | 21% - 100% (electronically mixed) |
| PEEP | 0 - 50 cmH2O |
| Pressure Trigger | -20 to 0 cmH2O |
| Flow Trigger | 0.5 to 20 L/min |
| Monitoring Parameters | VTI, VTE, MV, MVspont, Ppeak, Pmean, Pplat, PEEP, Freq, Fspont, I:E, FiO2, Compliance, Resistance |
| Waveforms | P-T, F-T, V-T, P-V loop, F-V loop |
| Alarms | High/Low Minute Volume, High/Low Pressure, Apnea, O2 Failure, AC Power Failure, Battery Low |
| Power Supply | 100-240V, 50/60Hz |
| Battery Backup | Built-in Lithium battery, minimum 2 hours duration |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Medisys Neocare Ventilator units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
