Cardiovascular diagnostics mein waveform precision, baseline stability aur immediate cardiac rhythm interpretation patient outcome ke liye sabse decisive factor hote hain. Ek primary healthcare clinic se lekar 500-bed multi-specialty tertiary care hospital tak, sahi Electrocardiograph (ECG) machine aur cardiology diagnostic equipment select karna clinical efficiency aur cost-effectiveness dono ke liye zaroori hai.
SMD Medicare par certified biomedical engineers dwara thoroughly tested aur factory-calibrated diagnostic machines available hain. Ye comprehensive procurement guide hospital medical superintendents, cardiology OPD doctors aur medical equipment purchase officers ko accurate, future-proof ECG equipment choose karne mein guide karti hai.
1 Single vs 3 vs 6 vs 12-Channel ECG: Kaunsa Model Kiske Liye Best Hai?

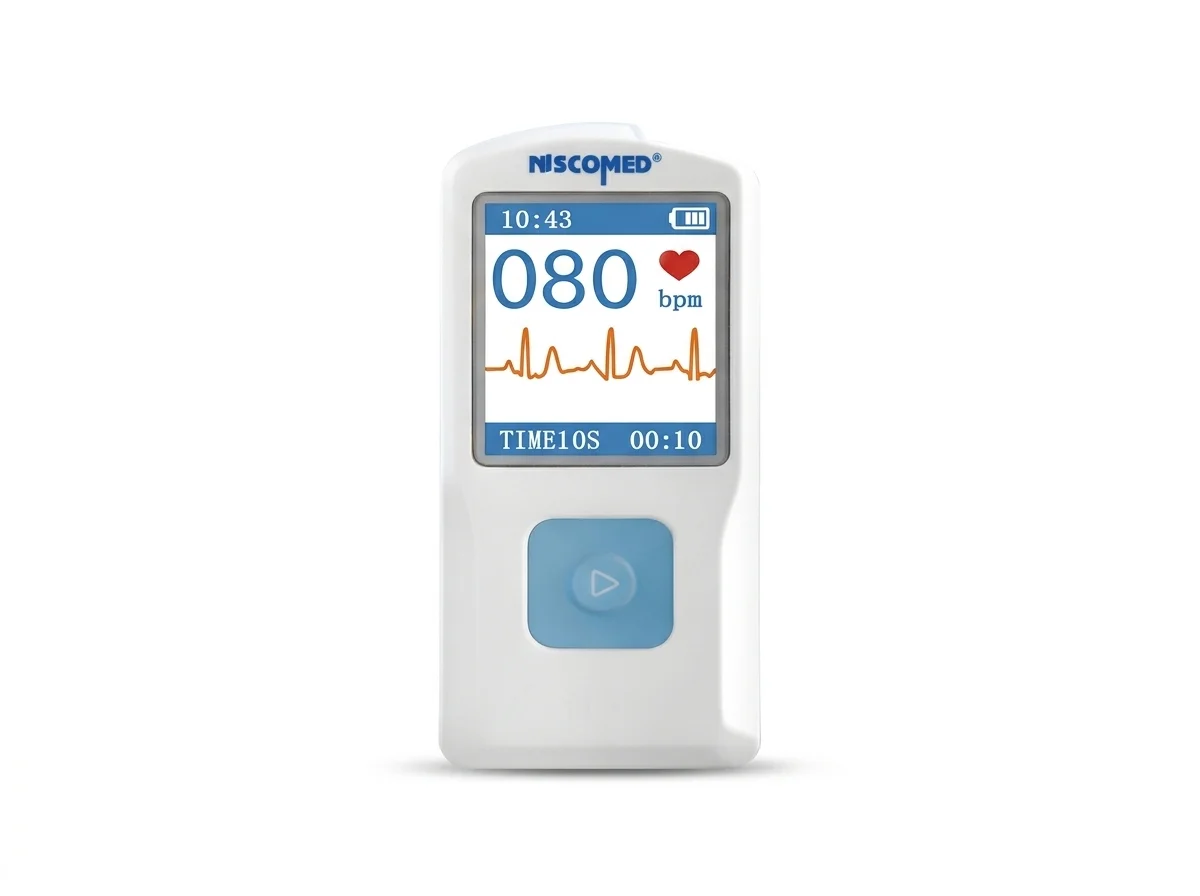

Mobile Screening & GP OPD
Ultra-portable lightweight unit jo 50mm thermal paper par single-strip rhythm capture karti hai. Rural health centers (PHC), general practitioner consulting rooms, aur remote cardiac health checkup camps ke liye ideal entry model hai.
Clinics & Nursing Homes
Simultaneous 12-lead acquisition with 63mm/110mm thermal printing. Built-in high-resolution color LCD, automatic rhythm analysis, aur arrhythmia detection. 20–50 bedded nursing homes aur pathology diagnostic centers ka prime choice.
ICU, ICCU & Cardiology Labs
Full A4 width printout (216mm) with simultaneous 12-lead continuous rhythm recording. Large 10.1" color touchscreen, advanced Glasgow diagnostic algorithm, pacemaker pulse detection, USB/LAN export, aur DICOM PACS compatibility.
2 Technical Comparison Matrix: Niscomed Digital ECG Machines
Hospitals aur private diagnostic clinics ke decision making ke liye Niscomed line-up ka side-by-side technical specification comparison:

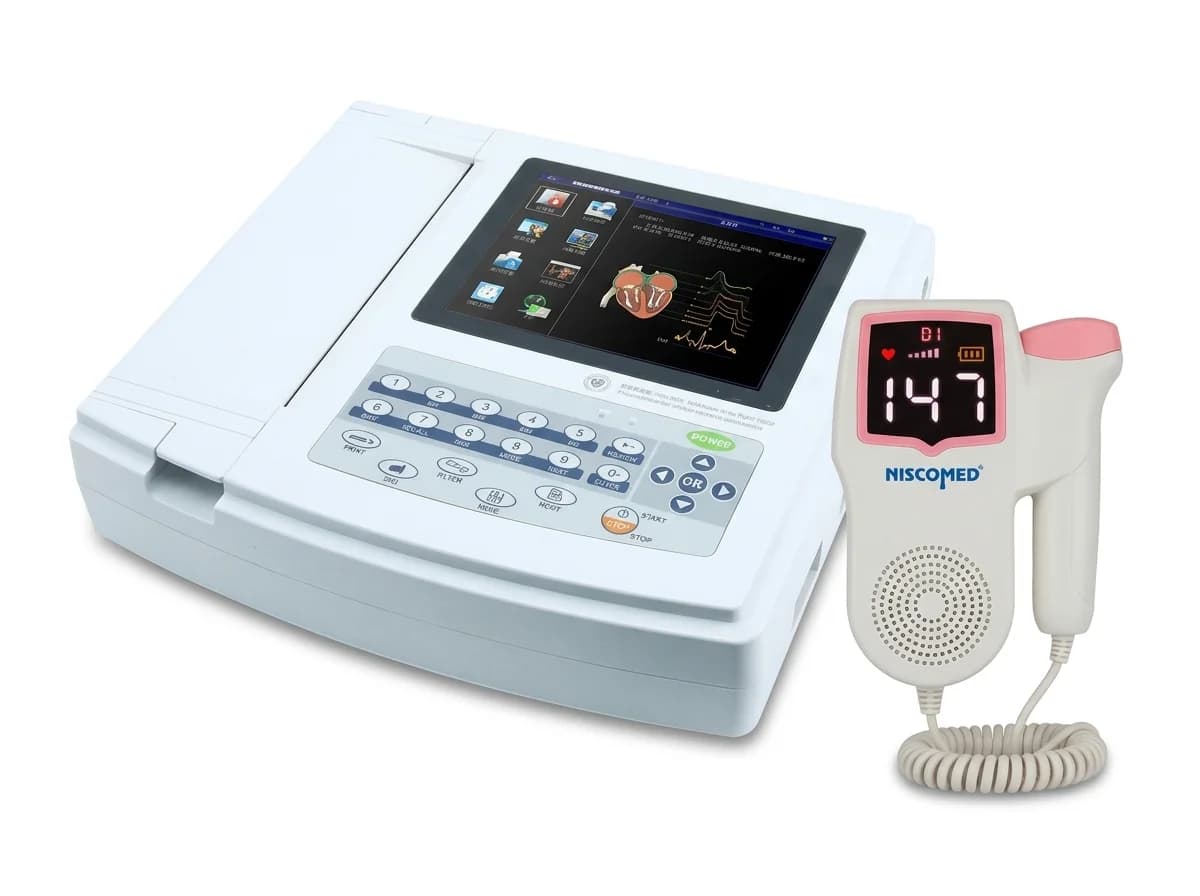

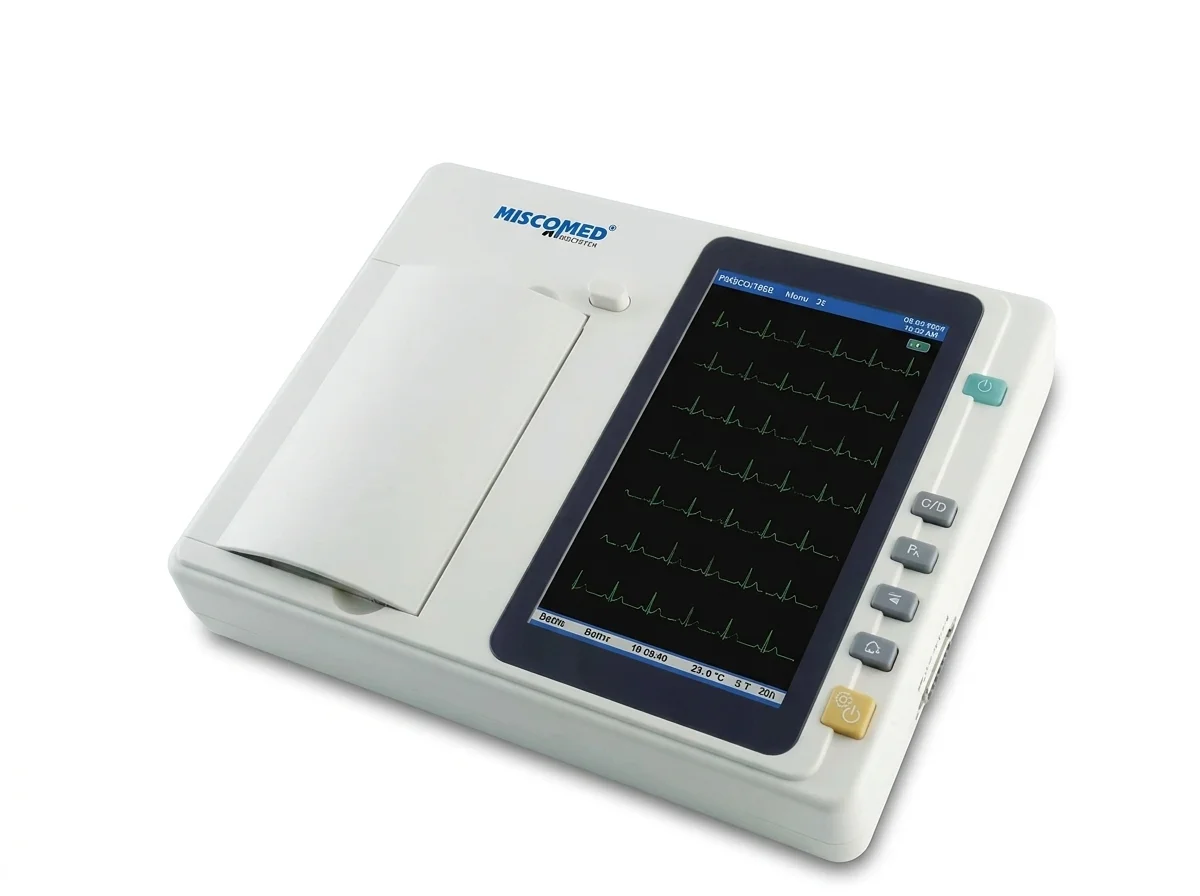

| Feature / Specification | Niscomed Single-Channel | Niscomed 3-Channel | Niscomed 6-Channel | Niscomed 12-Channel (Flight 1200) |
|---|---|---|---|---|
| Lead Acquisition | 12 Leads (Sequential) | 12 Leads (Simultaneous) | 12 Leads (Simultaneous) | 12 Leads (Simultaneous Full Sync) |
| Display Screen | High-Contrast Graphic LCD | 3.8" Color TFT Display | 7" High-Res Color Touchscreen | 10.1" Ultra-Wide Color Touchscreen |
| Thermal Printer Width | 50 mm Roll Paper | 63 mm / 80 mm Roll | 110 mm Z-Fold / Roll | 216 mm Standard A4 Thermal Paper |
| Diagnostic Algorithm | Heart Rate & Rhythm Strip | Automatic Diagnostic Analysis | Advanced Arrhythmia Detection | Comprehensive Minnesota/Glasgow Algorithm |
| Internal Memory | 50 Patient Records | 500+ ECG Traces | 1,000+ Records (SD/USB) | 5,000+ Records (USB/LAN/DICOM) |
| Battery Operating Time | 2 to 3 Hours Li-ion | 3 to 4 Hours Continuous | 4 Hours Heavy Duty | 4 to 5 Hours (150+ Printouts) |
| Defibrillator Protection | ✓ Built-in Protection | ✓ Built-in Protection | ✓ Built-in Protection | ✓ Anti-Defibrillation & Pacemaker Sync |
| Recommended Clinical Use | GP OPD / Health Camps | Primary Health Clinics | Nursing Homes & Emergency | ICU, ICCU, Pre-Op & Cath Labs |
3 Purchase Decision Checklist: 5 Crucial Factors Before Finalizing
CMRR > 100 dB (Noise Suppression)
High Common Mode Rejection Ratio ensure karta hai ki AC electricity hum, muscle tremor aur patient movement ki wajah se trace baseline distort na ho.
Sampling Rate (1000 Hz+)
Frequency response 0.05 Hz se 150 Hz hona chahiye taaki pediatric aur adult dono patient segments mein ST-elevation aur micro-arrhythmias miss na hon.
Defibrillator & Pacemaker Safety
ICU aur emergency triage mein patient ko defibrillator DC shock lagne par machine circuitry safe rehni chahiye without signal breakdown.
DICOM, USB & Hospital EMR Integration
Reports ko direct PDF ya XML format mein USB drive par export karke WhatsApp ya hospital information system (HIS) par doctor ko bhejna aasaan hona chahiye.
