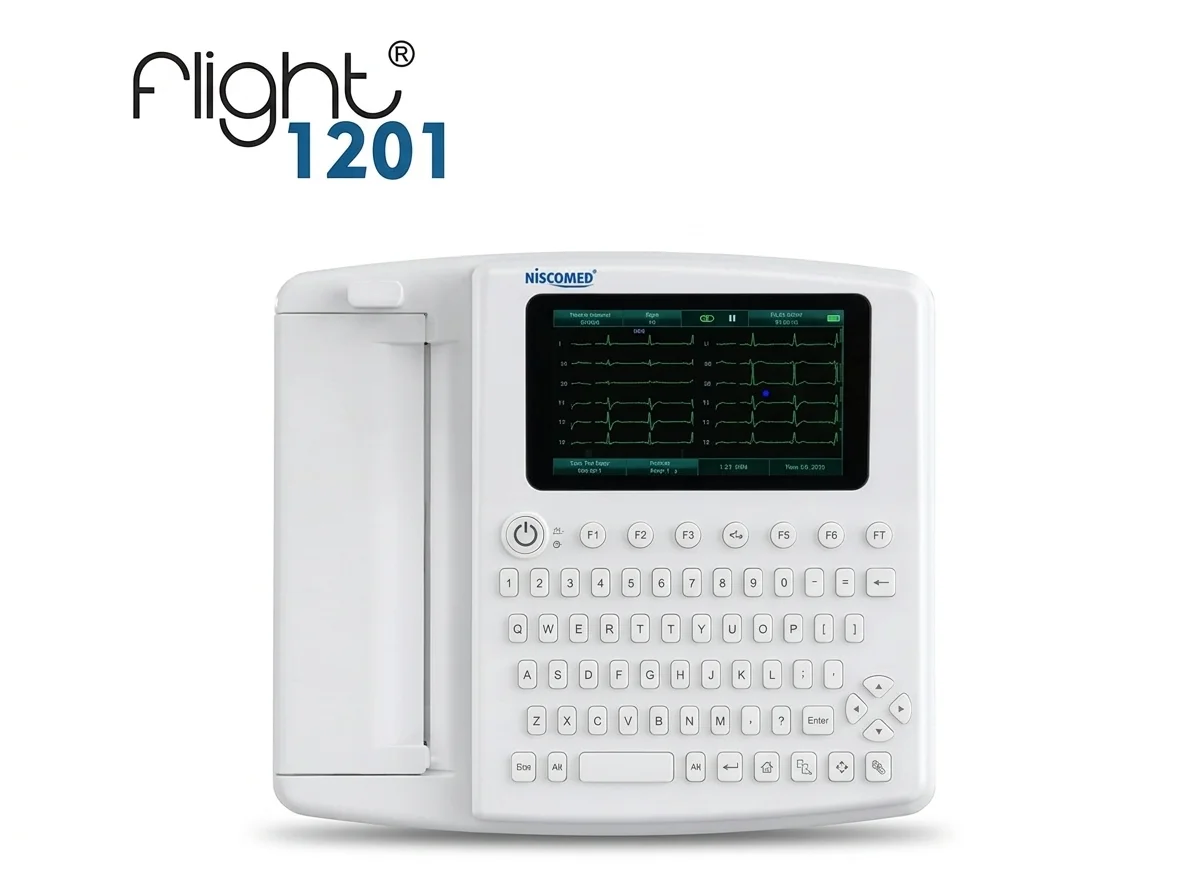

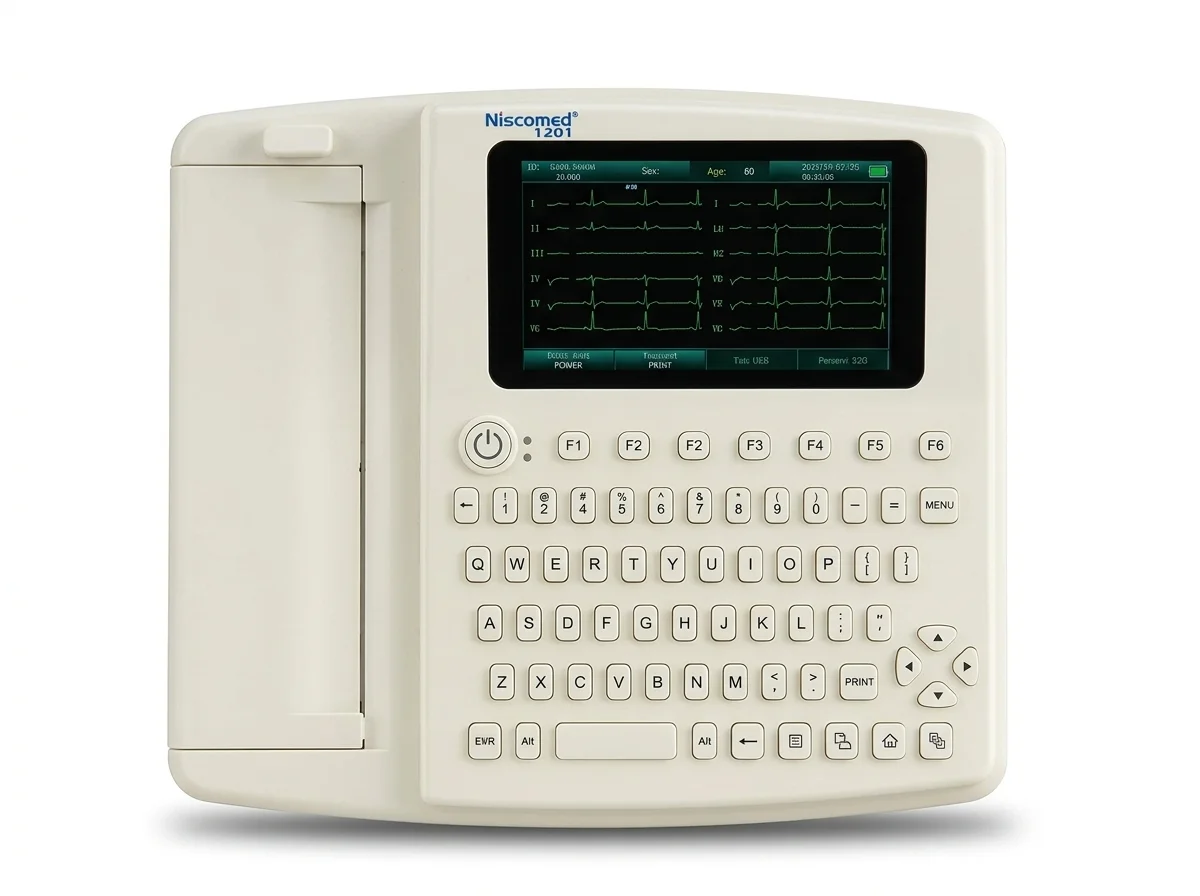

The Niscomed Twelve Channel ECG Machine is a flagship clinical electrocardiograph designed for advanced cardiology centers, tertiary care hospitals, intensive care units, and diagnostic laboratories across India. Featuring simultaneous 12-lead signal acquisition with high-precision 24-bit A/D conversion (8000 Hz sampling rate), this workstation prints complete 12-lead clinical reports on wide-format 210mm thermal paper. Equipped with a large high-definition color TFT display, advanced digital baseline drift suppression, and extensive digital archive capabilities, it offers comprehensive waveform fidelity for demanding clinical environments. Supplied by SMD Medicare with turnkey setup, calibration support, and manufacturer warranty coverage.
Core technical and clinical performance highlights
Simultaneous 12-lead ECG acquisition and real-time waveform display.
High-resolution color TFT LCD for comprehensive visualization of ECG traces and operational parameters.
Integrated thermal array printer with selectable print speeds (e.g., 5, 10, 12.5, 25, 50 mm/s) for report generation.
Advanced digital filtering system incorporating AC interference, baseline drift, and EMG suppression functionalities.
Internal data storage capacity for up to 1000 patient cases, facilitating review and archival.
Features a high sampling rate (e.g., 8000 Hz) combined with 24-bit A/D conversion for precise signal digitization.
Equipped with USB connectivity for data export to external devices or PC-based patient management software.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-003 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Cardiology (ECG Machines) |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Time Constant | ≥3.2s |
| Frequency Response | 0.05Hz - 150Hz (-3dB) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV, Auto |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05µA |
| Noise Level | <15µVp-p |
| Patient Leakage Current | <10µA (220V-240V) |
| Filter | EMG Filter: 25Hz/35Hz/45Hz; AC Filter: 50Hz/60Hz; Baseline Wander Filter: 0.1Hz |
| CMRR | >100dB |
| Recording Mode | Auto / Manual / Rhythm |
| Power Supply | AC: 100~240V, 50/60Hz; DC: 14.8V Rechargeable Li-ion Battery |
| Display | High-resolution Color TFT LCD |
