Clinical workflow integration, diagnostic efficacy, and device utility

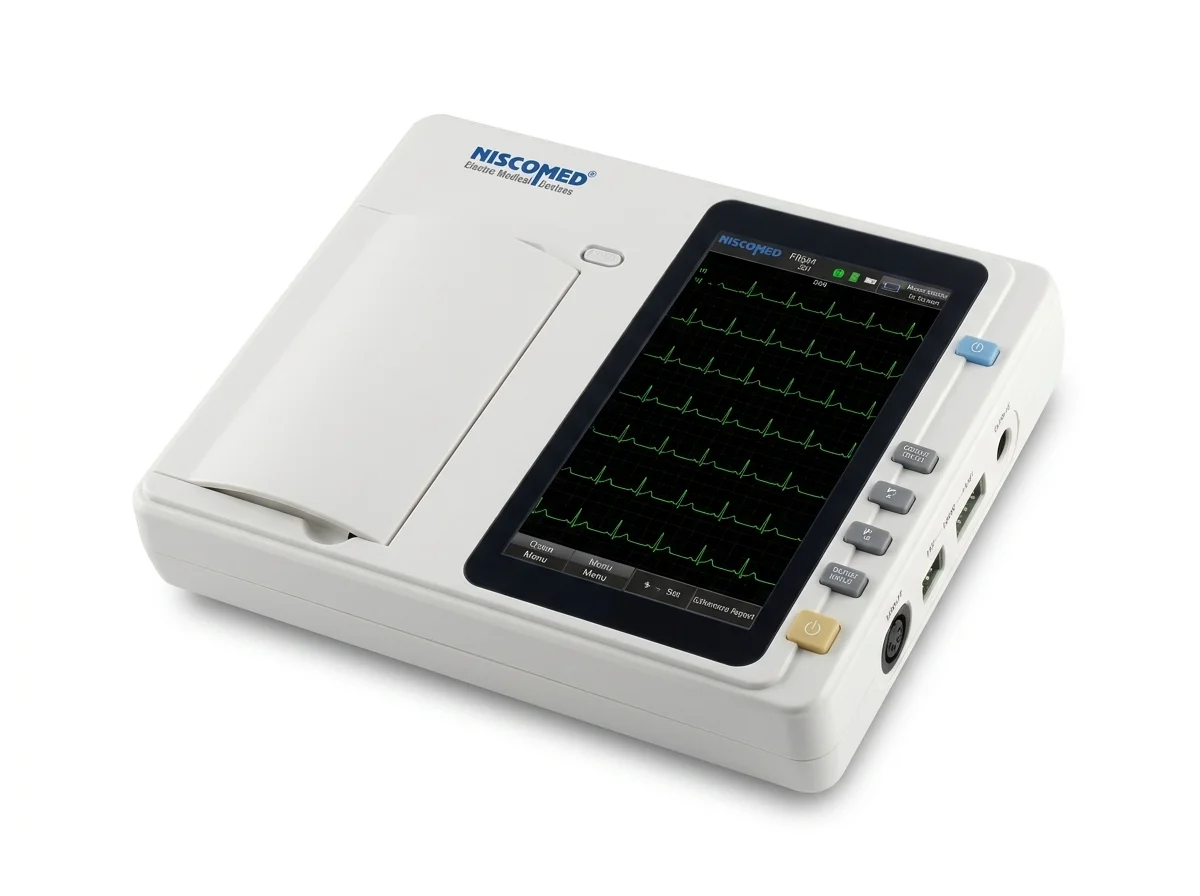

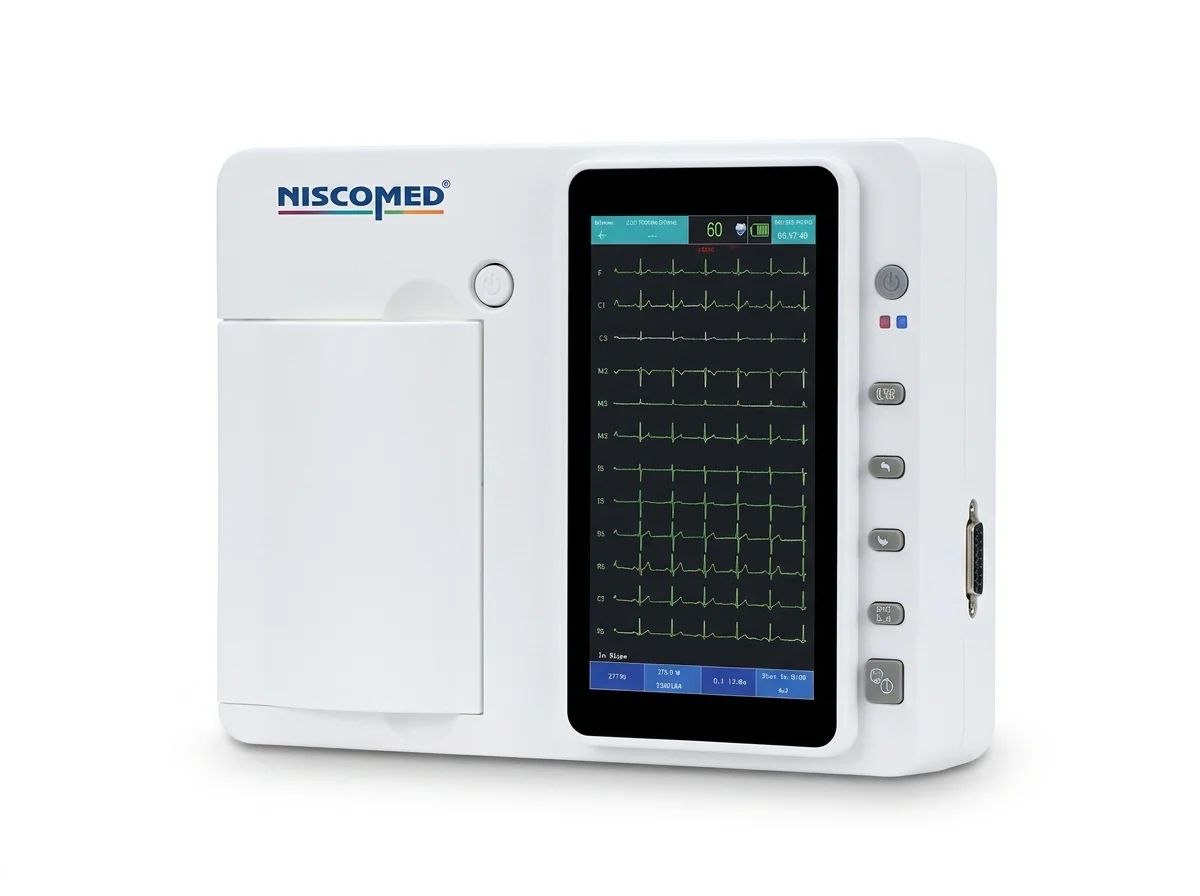

The Niscomed Three Channel ECG Machine is a professional-grade digital electrocardiograph engineered for hospitals, cardiology clinics, diagnostic centers, and emergency care facilities across India. Featuring simultaneous 12-lead signal acquisition and high-fidelity 3-channel thermal array printing, this robust device delivers accurate clinical waveform tracing and automated parameter measurements. Built with advanced digital filtering technology (AC, EMG, and baseline drift elimination), it ensures pristine signal clarity in demanding medical environments. SMD Medicare provides this 3-channel ECG machine with complete patient cable sets, thermal paper rolls, and wholesale B2B pricing with pan-India warranty.
Core technical and clinical performance highlights
12-Lead Simultaneous Acquisition: Accurately captures standard 12-lead ECG signals while providing crystal-clear 3-channel recording capabilities.
Smart Interpretation System: Integrated advanced algorithms for auto-measurement and automatic diagnostic analysis of heart rate and waveforms.
Vibrant Color Display: Features a high-resolution TFT/LCD screen allowing real-time monitoring of clinical ECG waveforms.
Digital Filtering Technology: Equipped with sophisticated anti-drift, AC, and EMG interference filters to ensure noise-free and stable baseline traces.
Dual Power Supply: Operates seamlessly on standard AC power or its reliable built-in rechargeable lithium-ion battery for uninterrupted use during power outages.
Built-in Thermal Printer: Comes with a high-speed thermal printing mechanism supporting multiple modes including Auto, Manual, and Rhythm.
Extensive Storage Options: Supports modern data transfer and storage via USB or SD card, making patient record management highly efficient.
Ergonomic & Portable Design: Lightweight and highly compact, making it ideal for hospital wards, busy clinics, and emergency ambulance use.

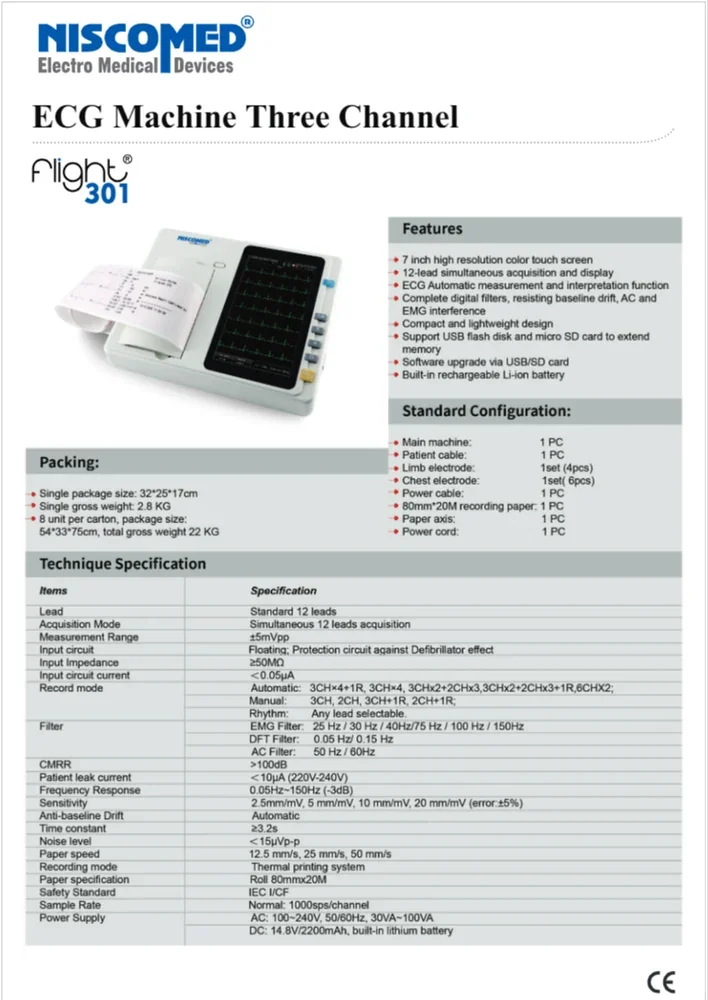

Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-001 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Cardiology (ECG Machines) |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Time Constant | ≥3.2s |
| Frequency Response | 0.05Hz - 150Hz (-3dB) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV, Auto |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05µA |
| Noise Level | <15µVp-p |
| Patient Leakage Current | <10µA (220V-240V) |
| Filter | EMG Filter: 25Hz/35Hz/45Hz; AC Filter: 50Hz/60Hz; Baseline Wander Filter: 0.1Hz |
| CMRR | >100dB |
| Recording Mode | Auto / Manual / Rhythm |
| Power Supply | AC: 100~240V, 50/60Hz; DC: 14.8V Rechargeable Li-ion Battery |
| Display | High-resolution Color TFT LCD |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Niscomed Three Channel ECG Machine units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
