Clinical workflow integration, diagnostic efficacy, and device utility

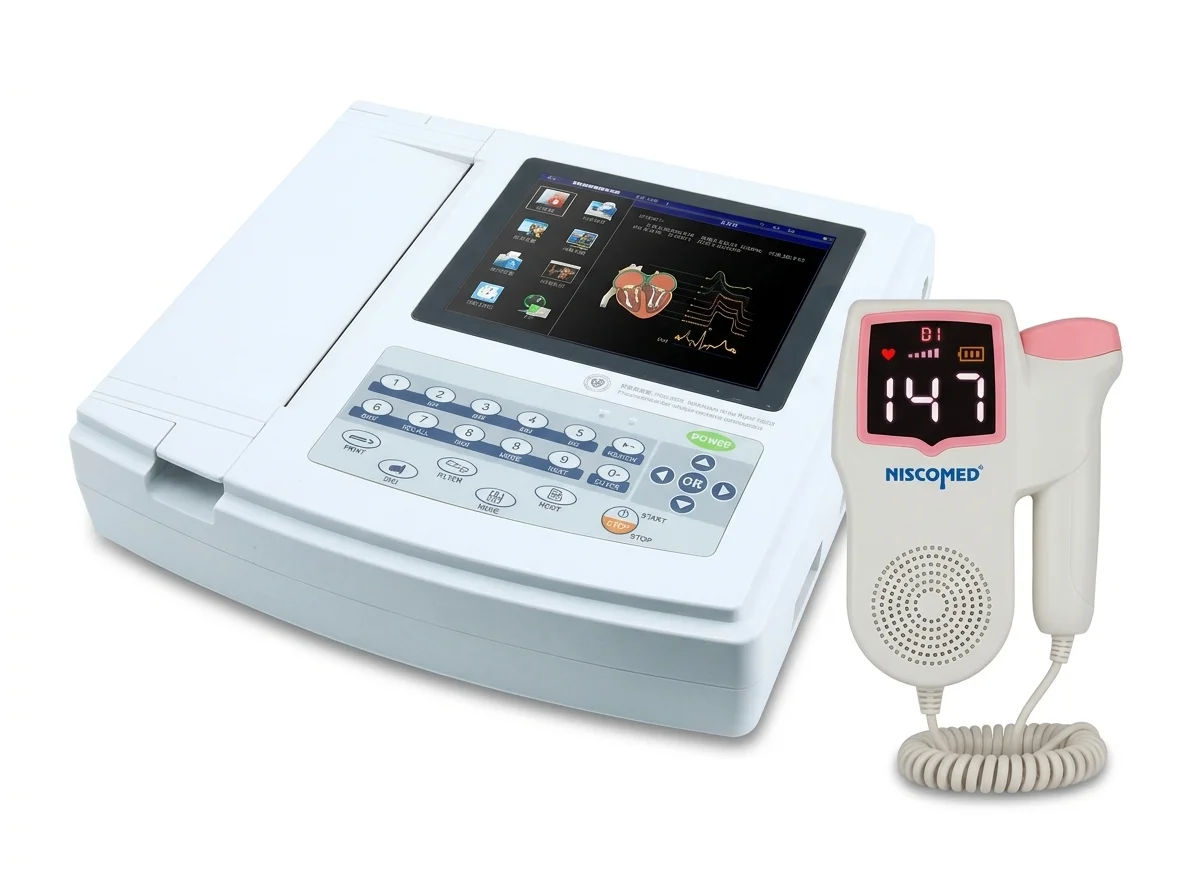

The Niscomed Twelve Channel ECG Machine (Flight 1200 Bundle) is an all-inclusive clinical diagnostic package featuring an 8-inch high-resolution color TFT workstation coupled with an ND-106 ultrasonic fetal doppler for maternity and cardiology clinics in India. Engineered with simultaneous 12-lead acquisition, 24-bit sampling accuracy, and wide-format thermal array printing (12x1, 6x2+1 rhythm modes), it provides defibrillation-proof patient isolation. Ideal for intensive care units, multi-specialty nursing homes, and emergency rooms, this dual-utility package delivers exceptional clinical diagnostic value. Supplied by SMD Medicare with complete electrode sets, doppler gel, and wholesale institutional discounts.
Core technical and clinical performance highlights
Auto-analysis and auto-interpretation functions that automatically measure routine ECG parameters including HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, and axis measurements (P Axis, QRS Axis, T Axis)
This reduces clinician burden by providing measurement results and auto-diagnosis conclusions alongside the waveform
USB and LAN sockets for uploading data to a PC, enabling integration with hospital information systems
A built-in lithium rechargeable battery with up to 10-hour standby time and continuous printing capability for more than 3 hours, making it suitable for point-of-care testing, home visits, and body examination programs
Patient leak current is The 8-inch TFT display (800x600 pixels) with LED backlight provides clear visualization of waveforms and parameters
AC filter, baseline filter, and EMG filter to eliminate noise and artifacts, with adjustable paper speed (5, 6.25, 10, 12.5, 25, 50 mm/s) and sensitivity options (5, 10, 20 mm/m V) for flexible diagnostic requirements
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-006 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Cardiology (ECG Machines) |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Time Constant | ≥3.2s |
| Frequency Response | 0.05Hz - 150Hz (-3dB) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV, Auto |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05µA |
| Noise Level | <15µVp-p |
| Patient Leakage Current | <10µA (220V-240V) |
| Filter | EMG Filter: 25Hz/35Hz/45Hz; AC Filter: 50Hz/60Hz; Baseline Wander Filter: 0.1Hz |
| CMRR | >100dB |
| Recording Mode | Auto / Manual / Rhythm |
| Power Supply | AC: 100~240V, 50/60Hz; DC: 14.8V Rechargeable Li-ion Battery |
| Display | High-resolution Color TFT LCD |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Niscomed Twelve Channel ECG Machine - Flight 1200 + Niscomed ND-106 Fetal Doppler Free units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
