Clinical workflow integration, diagnostic efficacy, and device utility

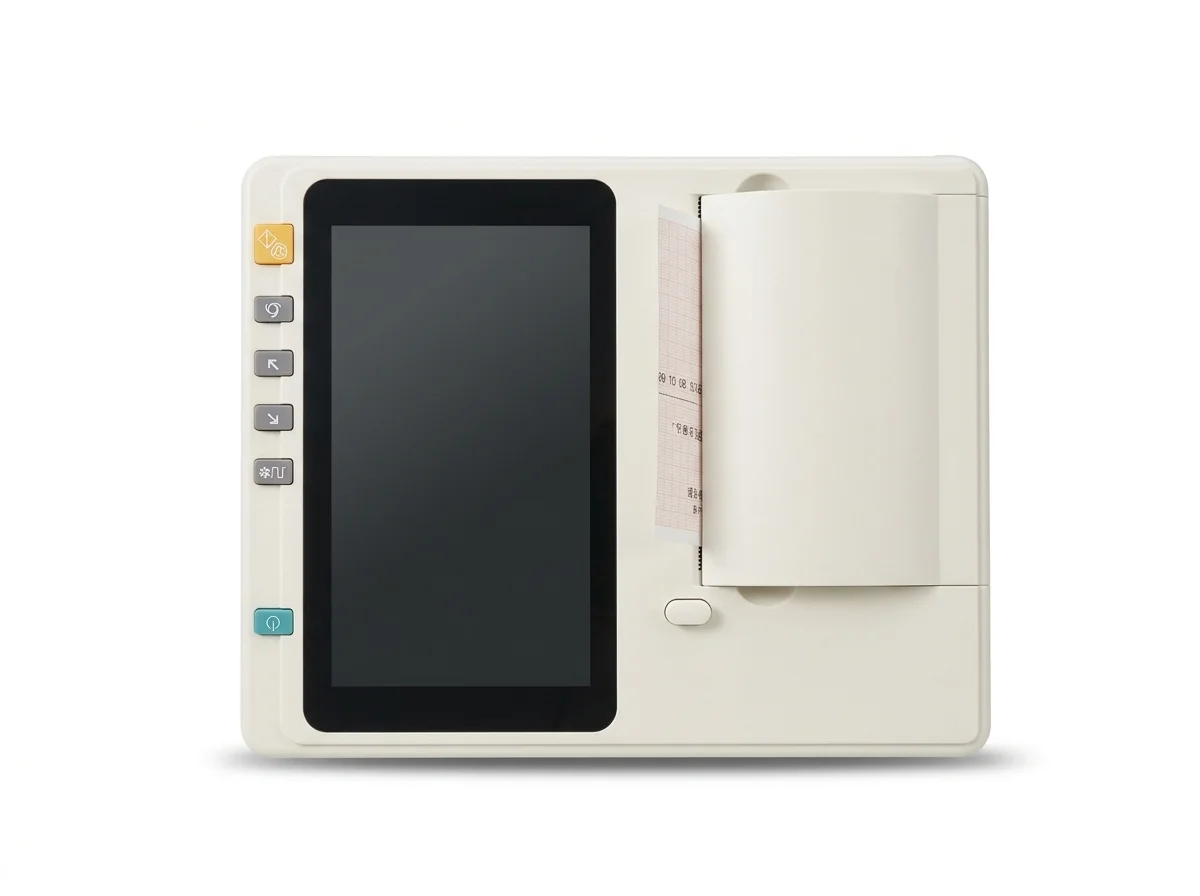

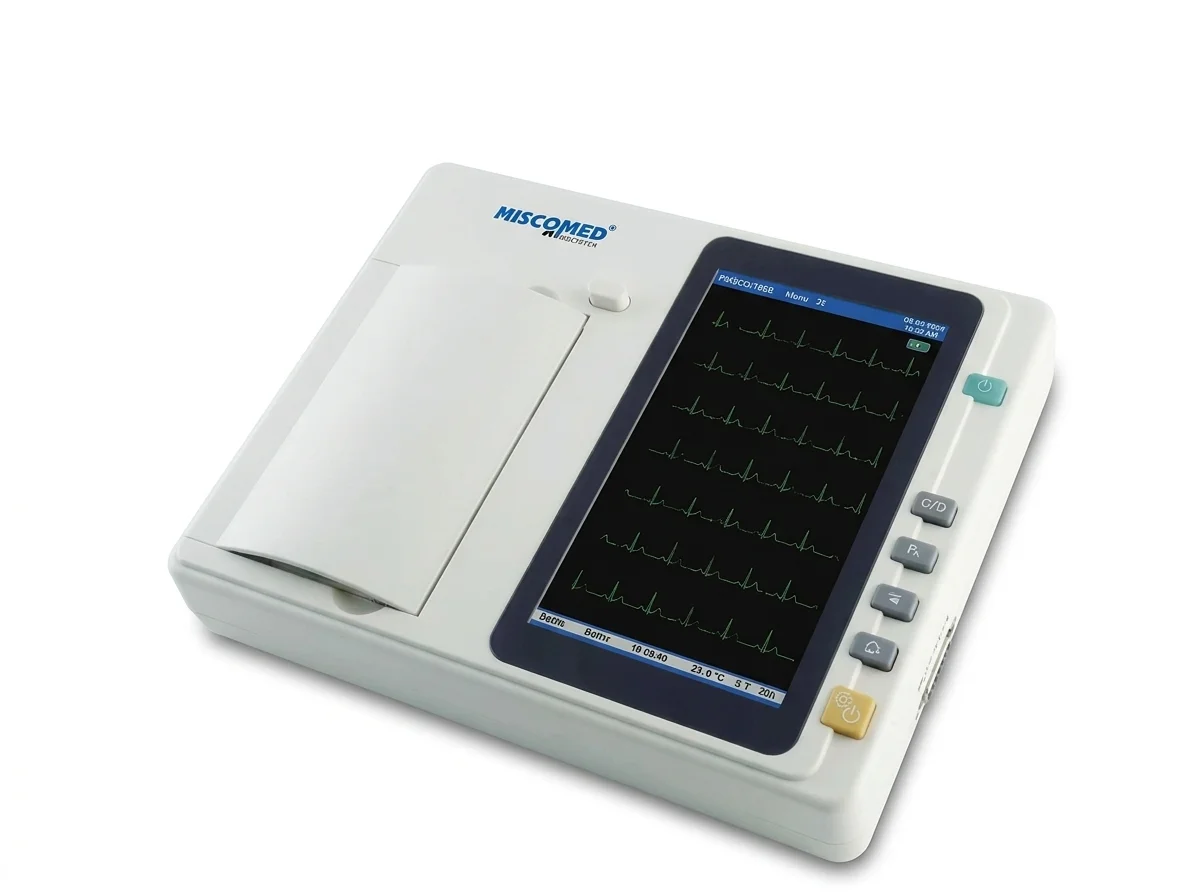

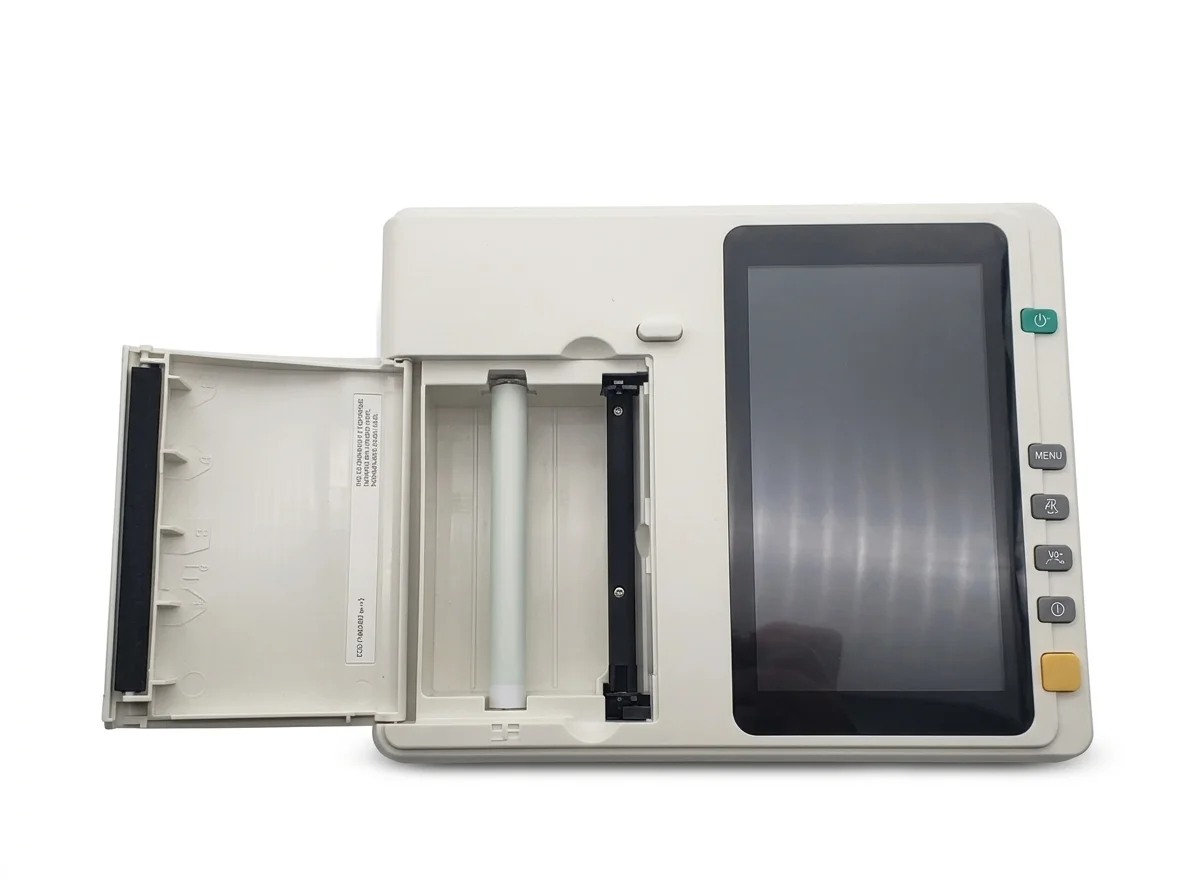

The Niscomed Six Channel ECG Machine is an advanced digital electrocardiograph system engineered for multi-specialty hospitals, cardiology departments, intensive care units (ICUs), and diagnostic pathology centers in India. Featuring simultaneous 12-lead signal acquisition and high-speed 6-channel thermal array printing on wide-format paper, it delivers comprehensive clinical waveform clarity and multi-channel trace comparisons. Designed with a high-resolution 7-inch color display and sophisticated digital filtering algorithms, it ensures uninterrupted, interference-free clinical evaluations. SMD Medicare offers this 6-channel ECG workstation with certified clinical accuracy, bulk procurement discounts, and prompt nationwide delivery.
Core technical and clinical performance highlights
12-Lead Simultaneous Processing: Engineered for accurate simultaneous acquisition of 12-lead ECG signals while delivering clear 6-channel printouts.
High-Resolution Touch Interface: Boasts a vibrant 7-inch color LCD touch screen for crisp, real-time visualization of patient heart rhythms.
Intelligent Diagnostic Support: Features advanced automatic interpretation and measurement functions to rapidly assist physicians in cardiac analysis.
Versatile Operation Modes: Fully adaptable to clinical workflows with specialized Auto, Manual, and Rhythm operating modes.
Smart Alert System: Built-in visual and audible alarms for "lead off" detections and "paper lack" scenarios, ensuring flawless operation.
Integrated Patient Database: Comes with robust internal memory management for secure storage and easy retrieval of previous ECG recordings.
Compact & Portable Architecture: Designed with a digital, lightweight footprint suitable for versatile use across hospital wards, ICUs, and outpatient clinics.
Reliable Power Management: Operates efficiently on standard AC power with battery backup capabilities for continuous patient monitoring.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-002 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Cardiology (ECG Machines) |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Time Constant | ≥3.2s |
| Frequency Response | 0.05Hz - 150Hz (-3dB) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV, Auto |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05µA |
| Noise Level | <15µVp-p |
| Patient Leakage Current | <10µA (220V-240V) |
| Filter | EMG Filter: 25Hz/35Hz/45Hz; AC Filter: 50Hz/60Hz; Baseline Wander Filter: 0.1Hz |
| CMRR | >100dB |
| Recording Mode | Auto / Manual / Rhythm |
| Power Supply | AC: 100~240V, 50/60Hz; DC: 14.8V Rechargeable Li-ion Battery |
| Display | High-resolution Color TFT LCD |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Niscomed Six Channel ECG Machine units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
