ISO & CE compliant certified clinical calibration
Damage-proof wooden crating with freight tracking
Pre-purchase consultation & operational guidance
Strict B2B Policy with OEM technical claim support
Clinical workflow integration, diagnostic efficacy, and device utility

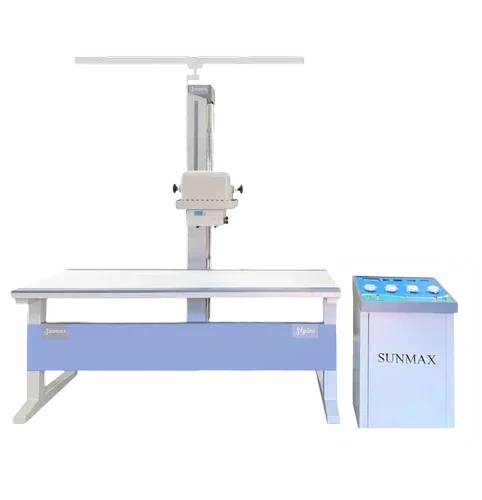

The 100m A Fixed X-Ray Machine with Horizontal Bucky Table is an AERB-compliant stationary diagnostic radiography system designed for diagnostic radiology centers, nursing homes, and multi-specialty clinics across India. Powered by a stable high-frequency X-ray generator and high-durability tube, it delivers consistent radiographic output with reduced skin dose, making it an ideal choice for routine chest, abdominal, spinal, and extremity radiographic examinations. Engineered with an ergonomic low-attenuation horizontal floating tabletop and a smooth oscillating bucky grid mechanism, this 100m A radiographic unit enables quick, comfortable patient positioning for pediatric and geriatric cases. SMD Medicare provides this high-utility stationary X-ray machine with wholesale B2B pricing, complete installation support, and full compatibility with CR cassettes and wireless flat panel DR detectors for seamless digital upgrading.
Core technical and clinical performance highlights
High-frequency X-ray generator providing a fixed 100m A tube current and an adjustable voltage range from 40 k Vp to 125 k Vp.
Nominal X-ray power output typically rated at 3.5 k W to 5 k W, enabling efficient radiographic procedures.
Integrated dual focal spot X-ray tube (e.g., 1.0 mm / 2.0 mm or 1.5 mm / 3.0 mm) for diverse imaging requirements.
Exposure time settings variable from 0.04 seconds to 3.0 seconds, with m As selection capacity up to 250 m As.
Fixed-height horizontal patient table featuring a low-attenuation floating tabletop (e.g., carbon fiber composite) with a patient weight capacity of 150 kg to 200 kg.
Integrated oscillating bucky mechanism incorporating a removable grid (e.g., 10:1 ratio, 103 LPI) compatible with 14"x17" radiographic cassettes.
Manual multi-leaf light beam diaphragm providing precise field size limitation and accurate patient positioning.
Microprocessor-controlled operator console equipped with digital readouts for k Vp, m As, and exposure time parameters.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-30256 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (X-Ray Machines) |
| Generator Type | High Frequency Inverter |
| Power Output | 100mA / 300mA / 40kW / 50kW (varies by specific model) |
| kVp Range | 40 kVp to 125 kVp (adjustable in 1 kV steps) |
| mA Range | 10 mA to 500 mA (model dependent) |
| Exposure Time | 0.001 to 6.3 seconds |
| mAs Range | 0.1 to 500 mAs |
| X-Ray Tube | Rotating Anode / Stationary Anode |
| Focal Spot | Small: 0.6mm, Large: 1.2mm |
| Collimator | Manual or Motorized with LED light field indicator |
| Display | Digital LED/LCD Control Panel |
| Anatomical Programs (APR) | Pre-programmed anatomical selections for quick setup |
| Protection | Over-voltage, over-current, tube overload protection |
| Power Supply | 220V/240V AC, Single/Three Phase, 50/60 Hz |
| Mobility | Heavy-duty castors with braking system (for mobile units) |
| Certifications | AERB Approved / CE / ISO Certified |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine 100mA Fixed X-Ray Machine With Horizontal Bucky Table units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
