Clinical workflow integration, diagnostic efficacy, and device utility

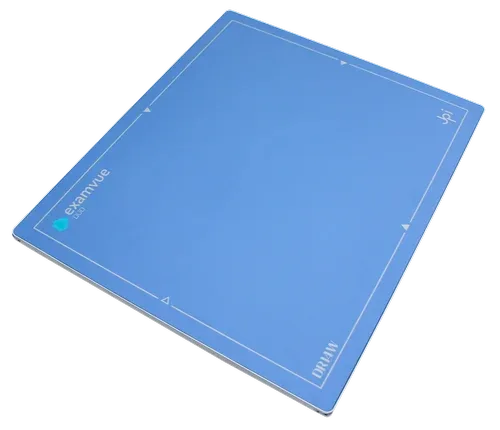

The DR14W (14x17 inch) and DR17W (17x17 inch) JPI Wireless Flat Panel Detectors offer a fast, cost-effective digital radiography upgrade pathway for existing analog and CR X-ray suites in India. Utilizing high-sensitivity direct-deposit Cesium Iodide (Cs I) scintillators and Automatic Exposure Detection (AED), these detectors sync with any existing X-ray generator without electrical modifications, displaying high-resolution digital radiographs in under 4 seconds. Featuring long-lasting battery life, lightweight carbon fiber construction, and high Detective Quantum Efficiency (DQE) for low-dose patient safety, these detectors integrate seamlessly with PACS and DICOM 3.0 networks. Supplied by SMD Medicare with complete software installation, calibration, and warranty support across India.
Core technical and clinical performance highlights
Scintillator Technology: Employs Cesium Iodide (Cs I) scintillator for superior image quality at lower radiation doses.
High Resolution: Delivers 16-bit A/D conversion with an active pixel matrix optimized for detailed bone and tissue imaging.
Wireless Connectivity: Equipped with dual-band Wi Fi (2.4GHz/5GHz) for fast, cord-free image transmission to workstations.
AED Function: Automatic Exposure Detection (AED) eliminates the need for physical generator synchronization.
Durability: Housed in a robust, lightweight carbon fiber or magnesium alloy casing resistant to drops and fluid ingress.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-30265 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (X-Ray Machines) |
| Generator Type | High Frequency Inverter |
| Power Output | 100mA / 300mA / 40kW / 50kW (varies by specific model) |
| kVp Range | 40 kVp to 125 kVp (adjustable in 1 kV steps) |
| mA Range | 10 mA to 500 mA (model dependent) |
| Exposure Time | 0.001 to 6.3 seconds |
| mAs Range | 0.1 to 500 mAs |
| X-Ray Tube | Rotating Anode / Stationary Anode |
| Focal Spot | Small: 0.6mm, Large: 1.2mm |
| Collimator | Manual or Motorized with LED light field indicator |
| Display | Digital LED/LCD Control Panel |
| Anatomical Programs (APR) | Pre-programmed anatomical selections for quick setup |
| Protection | Over-voltage, over-current, tube overload protection |
| Power Supply | 220V/240V AC, Single/Three Phase, 50/60 Hz |
| Mobility | Heavy-duty castors with braking system (for mobile units) |
| Certifications | AERB Approved / CE / ISO Certified |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine DR14W And DR17W JPI X-Ray Detector units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
