Clinical workflow integration, diagnostic efficacy, and device utility

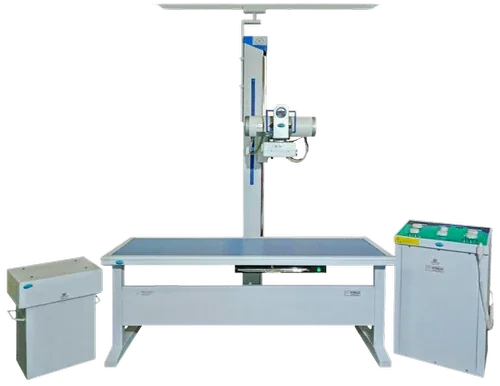

The 300mA Fixed Diagnostic X-Ray Machine is engineered for high-throughput radiology suites in multi-specialty hospitals, orthopedic diagnostic clinics, and medical colleges. Powered by a 30 kW High-Frequency generator and a dual-focus rotating anode X-ray tube, this system delivers ultra-sharp radiographic imaging for chest, spine, pelvis, extremities, and barium contrast examinations while strictly adhering to AERB (Atomic Energy Regulatory Board) safety standards.
AERB regulatory compliance mandates specific physical shielding and layout standards for 300mA fixed radiographic installations:
Core technical and clinical performance highlights
High-frequency X-ray generator with a peak output of 300m A at 100k Vp.
Selectable kilovoltage peak (k Vp) range from 40 k V to 125 k V, with 1 k V step adjustments.
Exposure dose-area product (DAP) range from 0.5 m As to 300 m As, offering fine increment control.
Incorporates a rotating anode X-ray tube featuring dual focal spots (e.g., 0.6 mm and 1.2 mm).
Microprocessor-controlled operator console with digital display of exposure parameters and Anatomical Programmed Radiography (APR) functions.
Manual multi-leaf collimator equipped with a high-intensity LED light field for accurate patient positioning.
Compatible with both computed radiography (CR) and digital radiography (DR) imaging systems via DICOM 3.0 interface.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-30257 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (X-Ray Machines) |
| Model Type | 300mA Fixed Diagnostic Radiography System |
| Generator Capacity | 30 kW High-Frequency Inverter (40 kHz, Microprocessor Controlled) |
| Radiographic Current (mA) | 300 mA maximum (stations: 50, 100, 150, 200, 300 mA) |
| Tube Voltage (kVp) | 40 kVp to 125 kVp in fine 1 kVp steps |
| mAs Range | 0.1 mAs to 300 mAs across 32 calibrated settings |
| Exposure Time | 0.001 sec (1 ms) to 5.0 seconds |
| X-Ray Tube Type | Rotating Anode with dual focal spots |
| Focal Spot Size | Small Focus: 1.0 mm | Large Focus: 2.0 mm |
| Anode Speed & Target | 2,800 RPM rotating target with 16° tungsten target angle |
| Anode Heat Storage Capacity | 140 kHU (105 kJ) with automatic thermal safety lock |
| Collimator | Manual multi-leaf collimator with crosshair LED beam indicator & measuring tape |
| Cassette Compatibility | All darkroom cassettes, CR imaging plates & Flat Panel Detectors up to 14x17 inch |
| Bucky Grid | Reciprocating vibrating bucky grid, 85 lines/inch, 8:1 ratio (optional 10:1) |
| Radiation Shielding Compliance | AERB Safety Code AERB/SC/MED-2 type approved |
| Power Requirements | 415V AC, 3-Phase, 50 Hz, 30 kVA (or 230V Single Phase line matching unit) |
| Certifications | AERB Approved, ISO 13485:2016, CE Certified, BIS Standard |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine 300mA X-Ray Machine units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
