Clinical workflow integration, diagnostic efficacy, and device utility

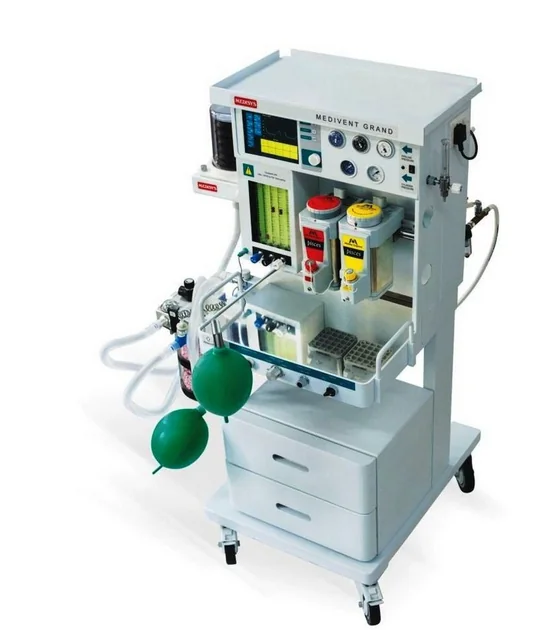

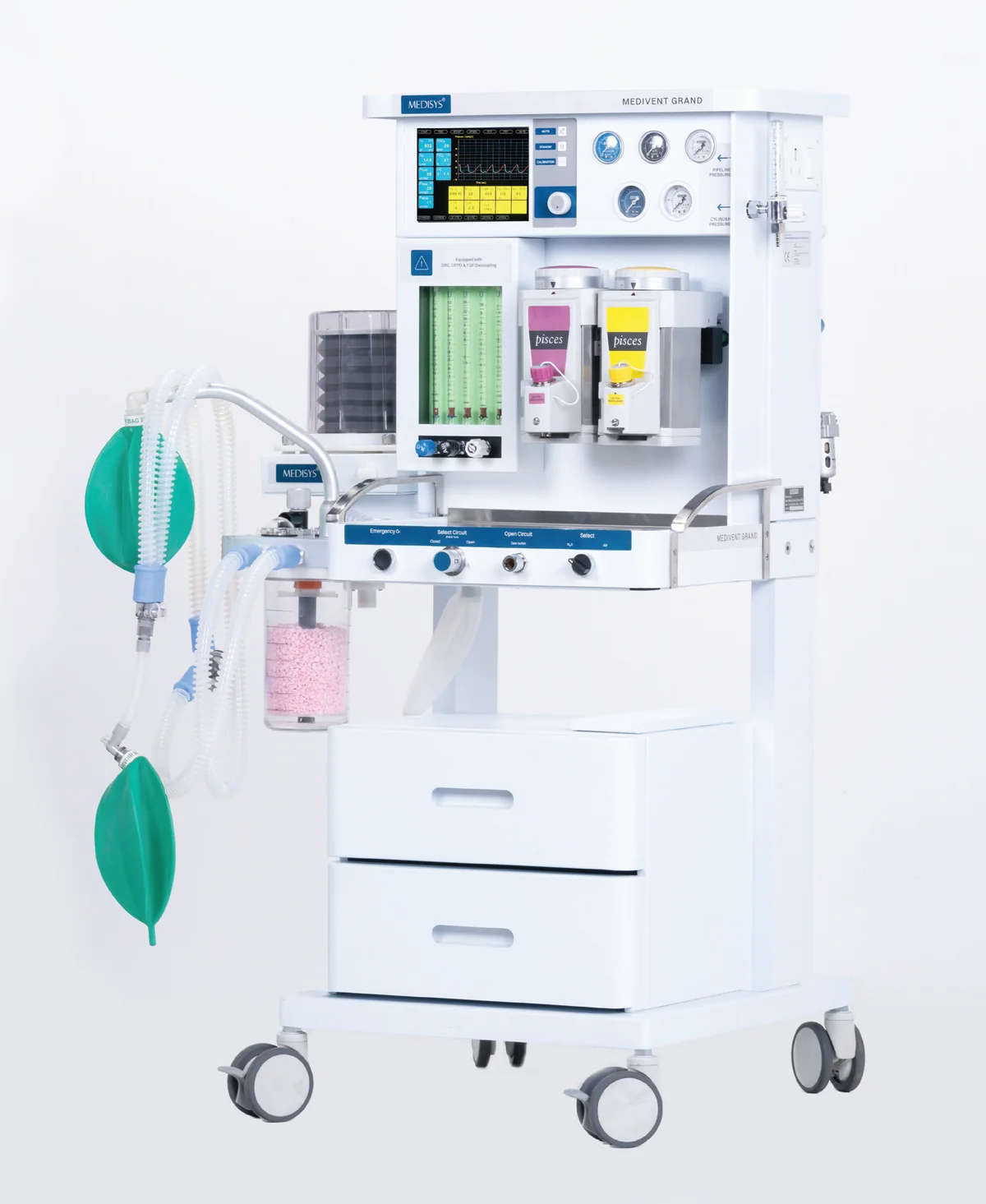

The Medisys Grand Anesthesia Workstation is a premium operating theater anesthesia platform engineered for complex cardiac, neurosurgical, bariatric, and multi-specialty surgical interventions. It seamlessly merges precision electronic gas mixing, Selectatec-compatible dual interlock vaporizers, and an advanced ICU-grade electronically driven ventilator (VCV, PCV, SIMV, PSV) with continuous real-time spirometry loops (Pressure-Volume, Flow-Volume) and automatic compliance compensation.
Delivered complete with integrated anesthesia ventilator, Selectatec manifold, flowmeters, 1.5L CO2 absorber, heated patient breathing system, flow sensors, O2 cell, pipeline gas hoses, and 12-month comprehensive on-site warranty.
Core technical and clinical performance highlights
Electronically controlled, pneumatically driven ventilator with VCV, PCV, SIMV, and PSV modes; tidal volume range 20-1500 m L.

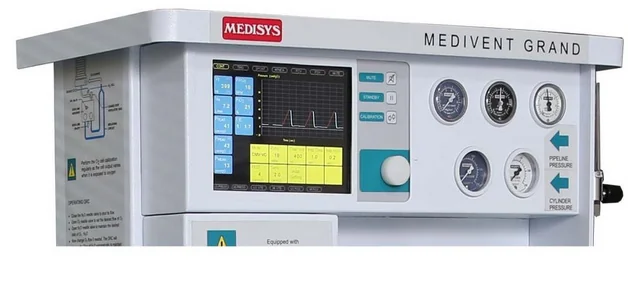

Integrated 15-inch color TFT LCD touchscreen displaying real-time waveforms and comprehensive numerical parameters.
Digital gas mixer with electronic flow control for O2, Medical Gas, and Air, incorporating an O2 concentration monitoring system and hypoxia guard.
Dual selectatec vaporizer manifold, compatible with agent-specific, agent-specific, and agent-specific vaporizers.
Integrated patient monitoring module: 5-lead ECG, NIBP, Sp O2, Et CO2 (sidestream analysis), and multi-agent anesthetic gas analysis.
Heated, autoclavable compact breathing circuit with 1.5 L CO2 absorber, optimized for low flow anesthesia.
Multi-level audible and visual alarm system for critical ventilation and patient parameters; includes integrated battery backup for >120 minutes of operation.
USB and Ethernet connectivity for data export, software upgrades, and integration with hospital information systems (HIS/PACS).
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-017 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (Anesthesia Machines) |
| Model Name | Medisys Grand Advanced Anesthesia Workstation |
| Ventilator Display | 10.4-inch High-Resolution Color TFT Screen with tactile encoder knob |
| Patient Spectrum | Neonatal (from 20 mL TV), Pediatric & Adult Patients |
| Ventilation Modes | VCV, PCV, SIMV-V, SIMV-P, PSV (Pressure Support), Manual, Spontaneous, Standby |
| Tidal Volume Range | 20 mL to 1,500 mL (resolution: 5 mL) |
| Respiratory Rate | 4 to 100 breaths per minute (bpm) |
| I:E Ratio | 4:1 to 1:8 in electronically calibrated steps |
| Inspiratory Pressure (Pinsp) | 5 to 70 cmH2O |
| PEEP Range | Electronic PEEP: OFF, 3 to 30 cmH2O |
| Vaporizer Mount | Selectatec dual-station bar with automatic mechanical interlock mechanism |
| Waveforms & Loops | Pressure-Time, Flow-Time, Volume-Time waveforms; P-V and F-V spirometry loops |
| Safety Systems | Pneumatic Hypoxic Guard (minimum 25% FiO2), O2 failure audible alarm, Pin-Index cylinder yokes |
| Emergency O2 Flush | 35 to 75 L/min with recessed push button |
| Circuit Absorber | Fully autoclavable integrated circle absorber with bypass canister change mechanism |
| Battery Backup | Internal rechargeable lithium-ion battery providing up to 120 minutes of continuous operation |
| Power Supply | 100 - 240 V AC, 50/60 Hz universal hospital mains |
| Certifications | ISO 80601-2-13, ISO 13485:2016, CE Medical Device Directive, BIS Approved |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Medisys Grand Anesthesia Workstation units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
