ISO & CE compliant certified clinical calibration
Damage-proof wooden crating with freight tracking
Pre-purchase consultation & operational guidance
Strict B2B Policy with OEM technical claim support
Clinical workflow integration, diagnostic efficacy, and device utility

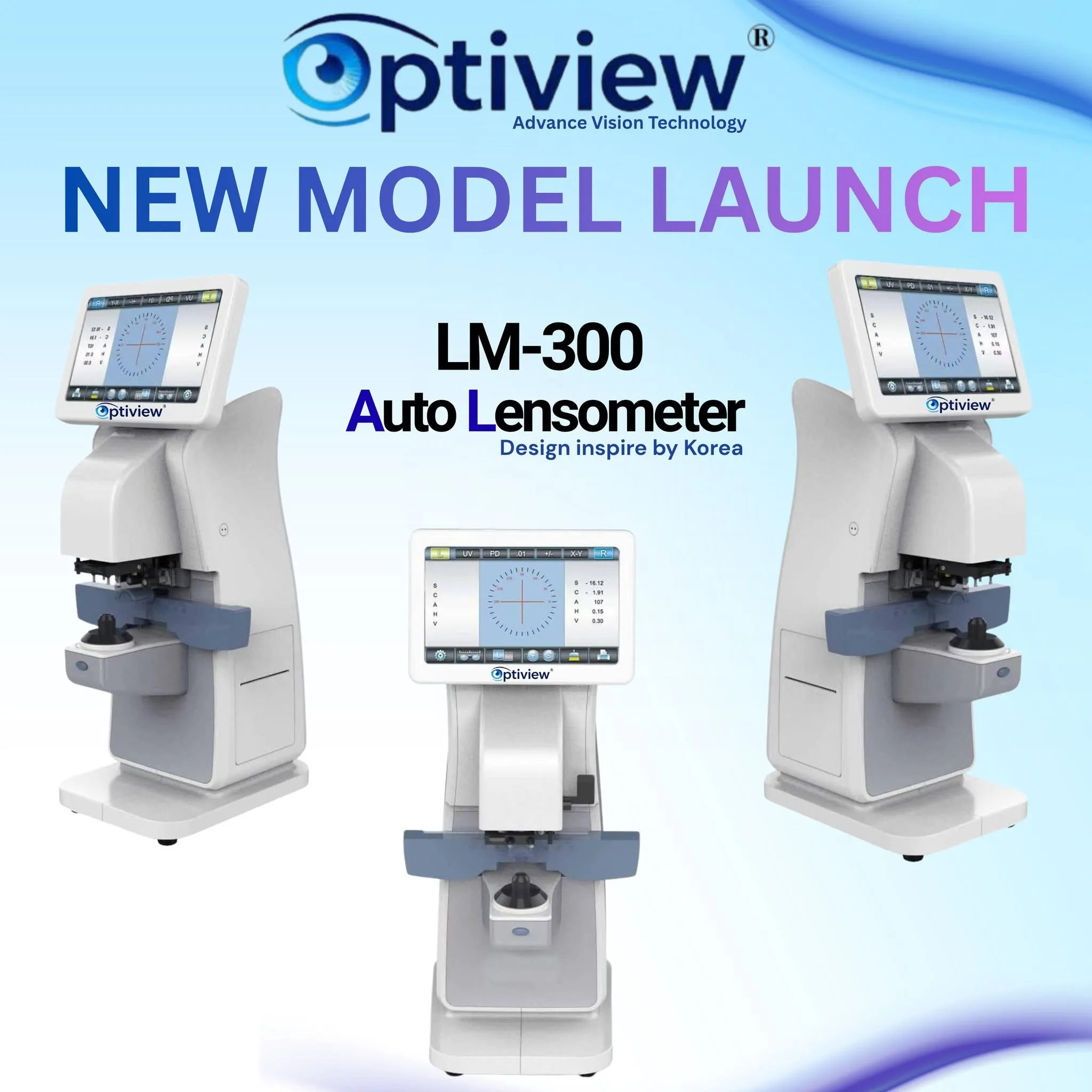

The Optiview LM-300 Auto Lensometer is a high-precision digital optical measurement workstation designed for Ophthalmology clinics, optometry practices, optical laboratories, and eye hospitals across India. Utilizing advanced Hartmann Sensor technology with green LED measurement light (540nm), this Lensometer provides instant, accurate measurements of single vision, bifocal, progressive power lenses (PAL), and contact lenses without requiring Abbe value compensations.\n\n Featuring a 7-inch tiltable high-definition color LCD screen, automated progressive lens recognition, UV transmittance analysis, and an integrated high-speed thermal printer, the LM-300 streamlines optical dispensary workflows. Check the detailed specifications below. Supplied by SMD Medicare with the best wholesale Price, complete technical setup, optical calibration assistance, and nationwide warranty support.
Core technical and clinical performance highlights
Sphere power measurement range: ±25.00D, Cylinder power: ±10.00D, Add power: 0.00 to 10.00D.
Prism measurement range: 0.00 to 20.00Δ with selectable 0.01Δ, 0.12Δ, or 0.25Δ steps.
Features a 7-inch color TFT LCD display with resistive touchscreen input.
Integrated UV transmittance measurement capability with a 1% resolution increment.
Accommodates automated measurement for single vision, progressive, and bifocal lens types.
Utilizes a Hartmann sensor array principle for wavefront analysis and power mapping.
Equipped with an integrated thermal printer and an RS-232C serial port for data output.
Axis measurement range from 0° to 180° in 1° increments.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-020 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Ophthalmology (Lensometer) |
| Warranty | 1 Year Comprehensive Warranty |
| Model | Professional Medical Grade |
| Technology | Advanced Microprocessor Controlled |
| Display | Clear Digital Readout |
| Operation Mode | Continuous / Intermittent |
| Safety Class | Class I / II, Type BF / CF applied parts |
| Power Supply | 220V, 50Hz AC |
| Battery | Built-in rechargeable battery backup |
| Alarms | Audio and Visual alarm indicators |
| Operating Environment | Temp: 5-40°C, Humidity: ≤80% |
| Storage Environment | Temp: -20-55°C, Humidity: ≤95% |
| Certifications | ISO 13485, CE Compliant |
| Warranty | Standard OEM Warranty |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Optiview LM-300 Auto Lensometer units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
