Clinical workflow integration, diagnostic efficacy, and device utility

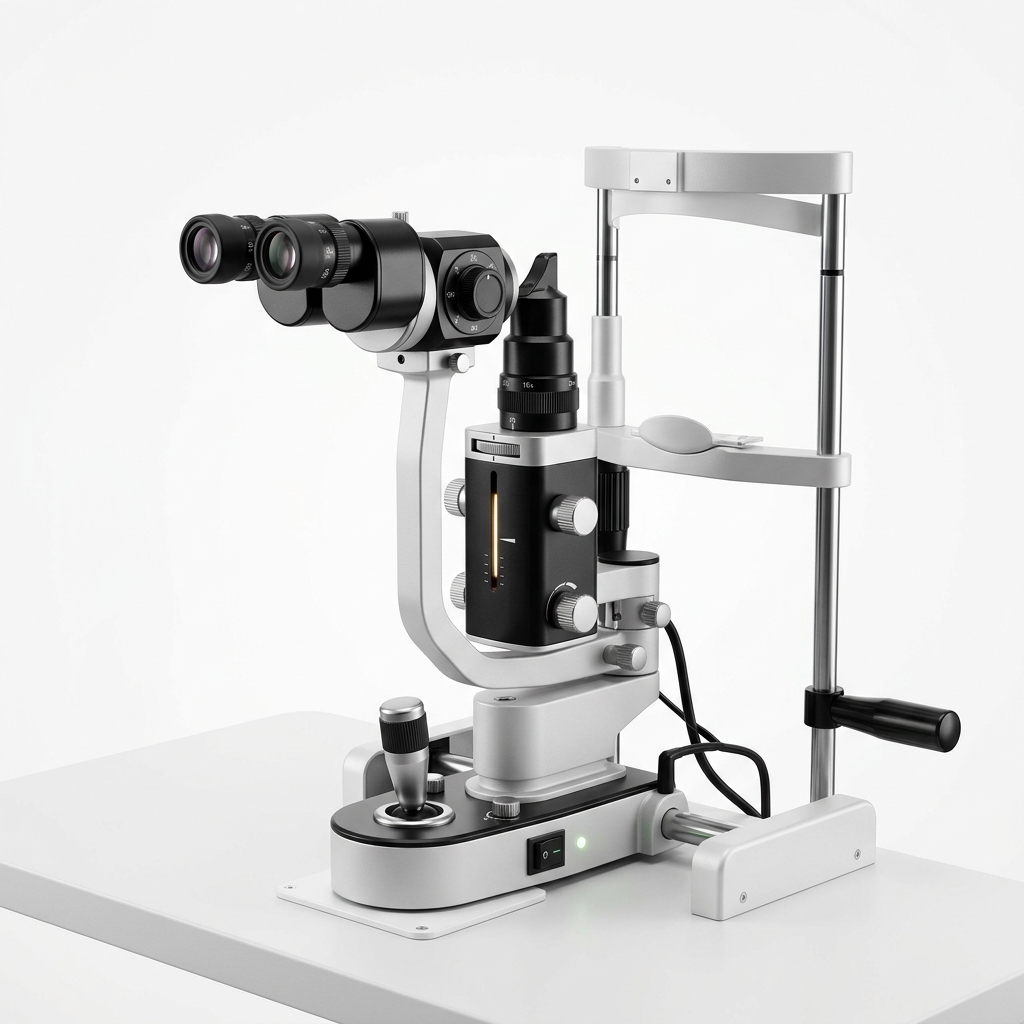

The Slit Lamp Microscope (5-Step Galilean Optics) is a premier ophthalmic diagnostic biomicroscope engineered for anterior and posterior segment eye examinations in optometry practices, ophthalmic clinics, and eye surgery hospitals in India. Featuring parallel Galilean drum optics, a high-luminance LED slit tower with stepless intensity control, and integrated Goldmann applanation tonometer mounting, it delivers unmatched optical resolution, edge-to-edge chromatic fidelity, and comfortable binocular visualization.
Includes heavy-duty base plate, motorized chinrest assembly with paper pins, breath shield, dust cover, spare LED module, calibration rod, and 12-month comprehensive warranty.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-210258 |
|---|---|
| Brand / Manufacturer | Optiview |
| Medical Category | Ophthalmology (Slit Lamps) |
| Microscope Type | Galilean Drum Optical System (Parallel Optics) |
| Magnification Steps | 5-Step Revolving Drum: 6x, 10x, 16x, 25x, 40x |
| Eyepieces | 12.5x High-Eyepoint Widefield Eyepieces |
| Diopter Adjustment | -8D to +8D individual ocular diopter compensation |
| Interpupillary Distance | Adjustable 52 mm to 78 mm |
| Slit Width | 0 to 14 mm continuous variable adjustment |
| Slit Length | 0.2 mm, 1 mm, 2 mm, 3 mm, 5 mm, 10 mm, 14 mm presets & continuous |
| Slit Angle & Rotation | 0° to 180° continuous horizontal rotation; 5°, 10°, 15°, 20° vertical tilt |
| Aperture Diameters | 14mm, 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm |
| Optical Filters | Cobalt Blue, Red-Free (Green), Heat Absorbing, Yellow (Fluorescence enhancement) |
| Light Source | High-CRI Warm White LED (Color Rendering Index ≥ 92, 50,000 hr lifespan) |
| Tonometer Mount | Standard spigot & guide holes for R-Type / T-Type Goldmann Applanation Tonometers |
| Base Travel | Longitudinal: 110 mm | Lateral: 110 mm | Fine Vertical: 30 mm |
| Chinrest Travel | 80 mm vertical travel with fixation target LED lamp |
| Power Requirements | 100V - 240V AC, 50/60 Hz, 35W |
| Certifications | ISO 13485:2016, CE Medical Device, BIS Standard |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Slit Lamp Microscope (5-Step Galilean Optics) units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
