Clinical workflow integration, diagnostic efficacy, and device utility

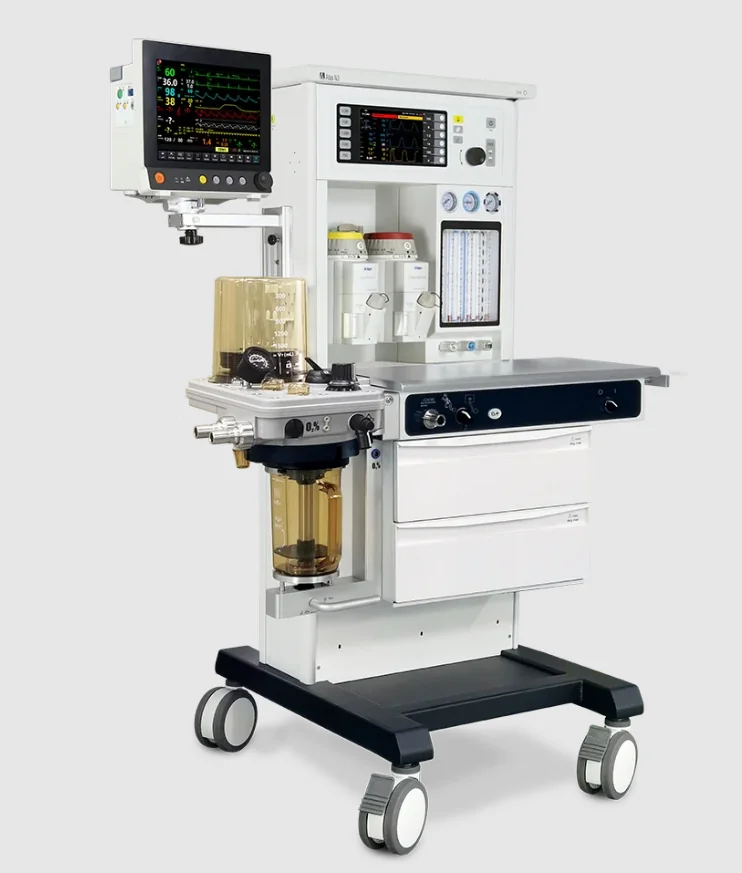

Designed to deliver comprehensive care across a full spectrum of patients--from neonates and pediatrics to adults--this advanced workstation features a user-friendly interface displayed on a vivid 8.4-inch color TFT screen, with an option to upgrade to a 12.1-inch touchscreen for enhanced control. It offers exceptional versatility with a standard tidal volume range of 10-1500 ml, which can be expanded to 5-1500 ml to accommodate even the smallest patients, supported by a complete suite of ventilation modes. The system is equipped with up to six flow tubes for three gases, with an available upgrade to full-electronic control and electronic flow metering for precise management. The robust integrated breathing circuit, constructed from durable PPSU or metallic materials, features a built-in heater to ensure optimal gas humidification. Operational efficiency is further enhanced by By-pass Technology for the soda lime canister, allowing for mid-operation replacement without circuit leaks, and a highly visible Auxiliary Common Gas Outlet (ACGO) for added safety and convenience.
Core technical and clinical performance highlights
8.4ÔÇ│(12.1ÔÇ│ for optional) color TFT screen, optional touch screen
User friendly interface
Tidal volume 10~1500 ml , optional choice 5~1500 ml
Up to 6 flow tubes for 3 gas (optional full-electronic control and electronic flow meter)
PPSU/Metallic material of breathing circuit
By-pass Tech for soda lime canister
All ventilation modes to satisfy neonate, pediatric and adult patients
Integrated breathing circuit with built-in heater
Highly visible ACGO.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-245 |
|---|---|
| Brand / Manufacturer | NORTHERN |
| Medical Category | Hospital Equipment (Anesthesia Machines) |
| Packaging | 1 Machine |
| Warranty | 1 Year |
| Application | Adult, Pediatric |
| Gas Supply | O2, Medical Gas Pipeline, Medical Air |
| Vaporizer | Selectatec compatible dual agent manifold, supports standard clinical inhalation agents |
| Flowmeter | Electronic or mechanical, high precision cascade flowmeters with backlight |
| O2 Flush | 35 - 75 L/min |
| Ventilation Modes | VCV, PCV, SIMV, Standby, Manual |
| Tidal Volume | 20 - 1500 mL |
| Respiratory Rate | 4 - 100 bpm |
| I:E Ratio | 4:1 to 1:8 |
| PEEP | Off, 3 - 30 cmH2O |
| CO2 Absorber | Integrated, bypass system allowing canister change during surgery |
| Monitoring | Tidal volume, minute volume, airway pressure, respiratory rate, FiO2, compliance |
| Waveforms | P-T, F-T, V-T |
| Alarms | Tidal volume limits, Minute volume limits, Airway pressure limits, Apnea, Gas failure, Power failure |
| Power Requirements | 100-240 VAC, 50/60 Hz |
